CanvasRenderingContext2D
Most of your interaction with the canvas will actually be directed toward its ‘rendering context’, a supporting object you can acquire by calling the canvas’s getContext() and newPage() methods.
Properties
.font
By default any line-height
value included in a font specification (separated from the font size by a /
) will be preserved but ignored. If the textWrap
property is set to true
, the line-height will control the vertical spacing between lines.
.fontVariant
The context’s .font
property follows the CSS 2.1 standard and allows the selection of only a single font-variant type: normal
vs small-caps
. The full range of CSS 3 font-variant values can be used if assigned to the context’s .fontVariant
property (presuming the currently selected font supports them). Note that setting .font
will also update the current .fontVariant
value, so be sure to set the variant after selecting a typeface.
.textTracking
.textTracking
The textTracking property has been removed and replaced with the now-standard letterSpacing
property.
.textDecoration
The .textDecoration
property can be assigned a string using the same syntax as the CSS text-decoration
property. With it, you can choose underline
, overline
, and line-through
styles, specify the line color, and select a style like wavy
, dotted
, or dashed
. Set it to none
to go back to drawing undecorated text. This setting will persist across changes to the .font
property.
.textWrap
The standard canvas has a rather impoverished typesetting system, allowing for only a single line of text and an approach to width-management that horizontally scales the letterforms (a type-crime if ever there was one). Skia Canvas allows you to opt-out of this single-line world by setting the .textWrap
property to true
. Doing so affects the behavior of the fillText()
, strokeText()
, and measureText()
.lineDashMarker
If a Path2D object is assigned to the context’s lineDashMarker
property, it will be used instead of the default dash pattern when setLineDash
has been set to a non-empty value. The marker will be drawn at evenly spaced intervals along the path with the distance controlled by the first number in the setLineDash
array—any subsequent values are ignored.
The marker should be a Path2D object centered on (0, 0). Points to the right of the origin will run parallel to the path being stroked. If the marker path ends with a closePath()
, the marker will be filled using the current strokeStyle
. if the path is not closed, it will be stroked using the current lineWidth
/join
/cap
, miterLimit
, and strokeStyle
.
// define marker paths
let caret = new Path2D()
caret.moveTo(-8,-8)
caret.lineTo( 0, 0)
caret.lineTo(-8, 8)
let dot = new Path2D()
dot.arc(0, 0, 4, 0, 2*Math.PI)
dot.closePath() // use fill rather than stroke
let cross = new Path2D()
cross.moveTo(-6,-6)
cross.lineTo( 6, 6)
cross.moveTo(-6, 6)
cross.lineTo( 6,-6)
// draw arcs using different markers
function drawArc(x, color){
ctx.strokeStyle = color
ctx.lineWidth = 4
ctx.beginPath()
ctx.arc(x + 120, 120, 100, -Math.PI, -Math.PI/2)
ctx.stroke()
}
ctx.setLineDash([20])
drawArc(0, "orange")
ctx.lineDashMarker = caret
drawArc(100, "deepskyblue")
ctx.lineDashMarker = dot
drawArc(200, "limegreen")
ctx.lineDashMarker = cross
drawArc(300, "red")
ctx.setLineDash([])
drawArc(400, "#aaa")
.lineDashFit
The lineDashFit
attribute can be set to "move"
, "turn"
, or "follow"
and controls how the marker is transformed with each repetition along the path. "move"
and "turn"
use simple translation and rotation, whereas "follow"
will bend the marker to match the dashed path's contours.
Methods
conicCurveTo()
conicCurveTo(cpx, cpy, x, y, weight)
void
Adds a line segment connecting the current point to (x, y) but curving toward the control point (cpx, cpy) along the way. The weight
argument controls how close the curve will come to the control point. If the weight is 0
, the result will be a straight line from the current point to (x, y). With a weight of 1.0
, the function is equivalent to calling quadraticCurveTo()
. Weights greater than 1.0
will pull the line segment ever closer to the control point.
createProjection()
createProjection(quad, [basis])
DOMMatrix
This method returns a DOMMatrix object which can be used to simulate perspective effects or other distortions in which the four corners of the canvas are mapped to an arbitrary quadrilateral (four sided polygon). The matrix must be passed to the context's setTransform method for it take effect.
quad
The quad
argument defines the target of the transformation. It specifies four points that establish where the four corners of the source coordinate space will be positioned within the viewport. If these points form a polygon other than a rectangle, lines drawn along the x & y axes of the source space will no longer be perpendicular—trapezoids allow for ‘vanishing point’ effects and parallelograms create ‘skew’.
The geometry of the quadrilateral should be described as an Array of either 8 or 4 numbers specifying an arbitrary polygon or rectangle respectively:
[x1, y1, x2, y2, x3, y3, x4, y4] // four corner points
[left, top, right, bottom] // four edges of a rectangle
// internal arrays for grouping are also allowed
[[x1, y1], [x2, y2], [x3, y3], [x4, y4]]
basis
The optional basis
argument defines the source quadrilateral whose corners will be mapped to the positions defined by quad
. If no basis
is specified, the canvas's bounding box will be used (i.e., the rectangle from ⟨0
, 0
⟩ to ⟨canvas.width
, canvas.height
⟩). Note that drawing commands that go outside of the basis
region may well be visible—it only establishes the geometry of the projection, not the clipping path.
The basis
polygon can be described using 2, 4, or 8 numbers, using the canvas dimensions to fill in the unspecified coordinates:
[width, height] // rectangle from ⟨0, 0⟩ to ⟨width, height⟩
[left, top, right, bottom] // four edges of a rectangle
[x1, y1, x2, y2, x3, y3, x4, y4] // four corner points
The projection matrix will apply to all types of drawing: shapes, images, and text. This example transforms a white box and red "@"
character into a trapezoid bounded by the vertical midline of the canvas and its left and right edges. Since no basis
argument is provided, it will default to using the current canvas bounds as the rectangle to be mapped onto that trapezoid.
let canvas = new Canvas(512, 512),
ctx = canvas.getContext("2d"),
{width:w, height:h} = canvas;
ctx.font = '900 480px Times'
ctx.textAlign = 'center'
ctx.fillStyle = '#aaa'
ctx.fillRect(0, 0, w, h)
let quad = [
w*.33, h/2, // upper left
w*.66, h/2, // upper right
w, h*.9, // bottom right
0, h*.9, // bottom left
]
let matrix = ctx.createProjection(quad) // use default basis
ctx.setTransform(matrix)
ctx.fillStyle = 'white'
ctx.fillRect(10, 10, w-20, h-20)
ctx.fillStyle = '#900'
ctx.fillText("@", w/2, h-40)
The results below show the image generated when the createProjection()
call is omitted entirely, called (as above) with just a quad
argument, or called with two different values for the optional basis
argument:
transform()
& setTransform()
transform(...matrix)
setTransform(...matrix)
These behave just like the standard transform and setTransform methods, but can accept their matrix argument in a variety of forms:
- a DOMMatrix object
- a CSS transform string (supporting all transform functions except
perspective
) - a matrix-like object with numeric attributes named
a
,b
,c
,d
,e
, &f
- a 6-element array of numbers
- 6 individual numeric arguments
For example all of these invocations result in setting the context to the same transform state:
ctx.setTransform(new DOMMatrix().scale(2, .5).rotate(180).translate(10, 10)) // DOMMatrix
ctx.setTransform('scale(2, 50%) rotate(180deg) translate(10, 10)') // CSS transform
ctx.setTransform({a:-2, b:0, c:0, d:-0.5, e:-20, f:-40}) // matrix-like object
ctx.setTransform([-2, 0, 0, -0.5, -20, -40]) // array
ctx.setTransform(-2, 0, 0, -0.5, -20, -40) // numeric arguments

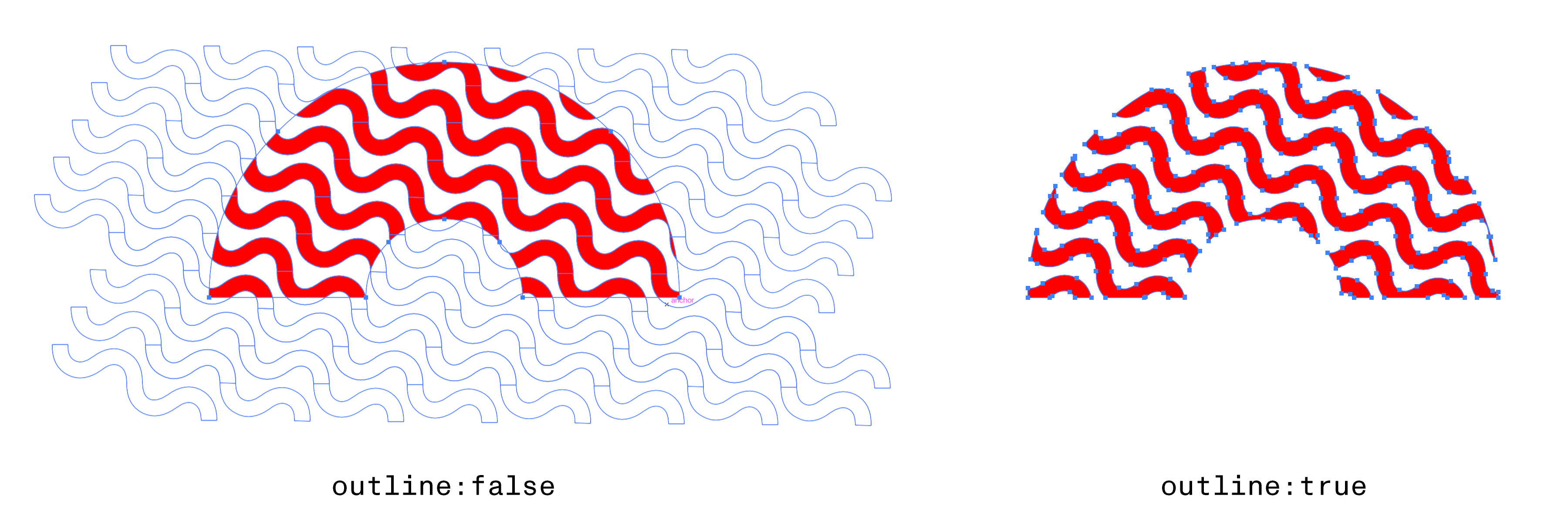

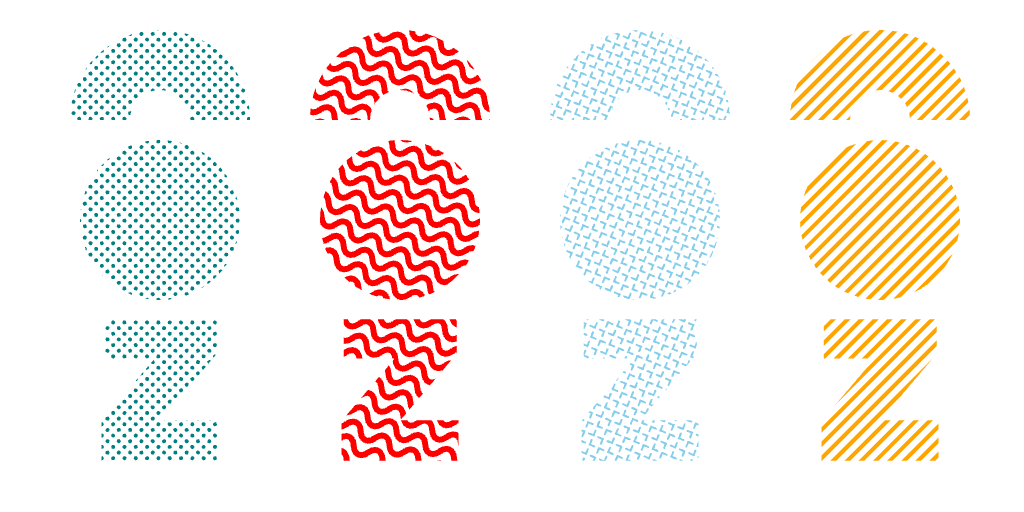

createTexture()
createTexture(spacing, {path, line, color, angle, offset=0})
CanvasTexture
The createTexture()
method returns a CanvasTexture
object that can be assigned to the context’s strokeStyle
or fillStyle
property. Similar to a CanvasPattern
, a CanvasTexture
defines a repeating pattern that will be drawn instead of a flat color, but textures define their content using vectors rather than bitmaps.
Textures can be based on a user-provided Path2D object or will draw a stripe pattern of parallel lines if a path isn’t provided.
spacing
The spacing
argument is required and defines the rectangular area that each repeating ‘tile’ in the pattern will occupy. It can either be a single number (which will be used for both dimensions) or an array with two numbers (width and height). When creating a stripe pattern, the spacing
argument defines the distance between neighboring lines, so providing more than one value is unnecessary.
The optional second argument can be an object with one or more of the following attributes:
path
If set to a Path2D object, the path
will be drawn once per tile with its origin in the upper left corner of each tile. Note that the path will not be clipped even if it extends beyond the bounds of the current tile, allowing you to overlap the texture with neighboring tiles.
line
If set to a positive number, the path will be stroked rather than filled and the line
value will set the width of the stroke.
color
By default the texture will be drawn in black (filled if line
is undefined, stroked otherwise). The color
argument can be set to a string defining the stroke/fill color to be used instead.
angle
The rectangle defined by the spacing
argument will be aligned with the canvas’s horizontal and vertical axes by default. Specifying an angle
value (in radians) allows you to rotate this tile grid clockwise relative to its default orientation.
offset
As with CanvasPattern
objects, textures are positioned globally relative to the upper left corner of the canvas—not the corner of the object currently being filled or stroked. To fine-tune the texture’s alignment with individual objects, set the offset
argument to an [x, y]
array with two numbers that will shift the texture relative to its origin.
drawImage()
drawImage(img, x, y)
drawImage(img, x, y, width, height)
drawImage(img, srcX, srcY, srcWidth, srcHeight, x, y, width, height)
This method behaves identically to the standard drawImage()
function, but accepts ImageData objects as well as Image and Canvas objects as its first argument.
Image objects loaded from SVG files that don't have an intrinsic size have some behavioral quirks to keep in mind when drawing:
- When passed to
drawImage()
without size arguments, the SVG will be scaled to a size that fits within the Canvas's current bounds (using an approach akin to CSS'sobject-fit: contain
). - When using the 9-argument version of
drawImage()
, the ‘crop’ arguments (srcX
,srcY
,srcWidth
, &srcHeight
) will correspond to this scaled-to-fit size, not the Image's reportedwidth
&height
.
createImageData()
& getImageData()
createImageData(width, height)
createImageData(width, height, {colorType="rgba", colorSpace="srgb"})
createImageData(imagedata)
getImageData(sx, sy, sw, sh)
getImageData(sx, sy, sw, sh, {colorType="rgba", colorSpace="srgb"})
ImageData
These methods behave identically to the standard createImageData() and getImageData() methods but have been extended to also accept an optional colorType
value in their settings argument. The colorType
defines the arrangement of individual color components in the ImageData's pixel array. If omitted, the type will default to "rgba"
, but any of the supported color types can be specified instead.
The colorSpace
argument is currently unused since non-sRGB colorspaces are not yet supported. You may omit it from your calls to these methods.
drawCanvas()
drawCanvas(canvas, x, y)
drawCanvas(canvas, x, y, width, height)
drawCanvas(canvas, srcX, srcY, srcWidth, srcHeight, x, y, width, height)
This method behaves identically to the standard drawImage()
function with one key difference: if the first argument is a canvas, it will not be converted to a bitmap before being drawn. Instead its contents will be added to the canvas as resolution-independent vector graphics. This is especially useful when scaling or rotating since it preserves the fidelity of text, patterns, and gradients from the source canvas.
let src = new Canvas(10, 10),
srcCtx = src.getContext("2d");
srcCtx.font = 'italic 10px Times'
srcCtx.fillText('¶', 2, 8)
let dst = new Canvas(350, 150),
dstCtx = dst.getContext("2d");
dstCtx.drawImage(src, 0, 0, 150, 150)
dstCtx.drawCanvas(src, 200, 0, 150, 150)
fillText()
& strokeText()
fillText(str, x, y, [width])
strokeText(str, x, y, [width])

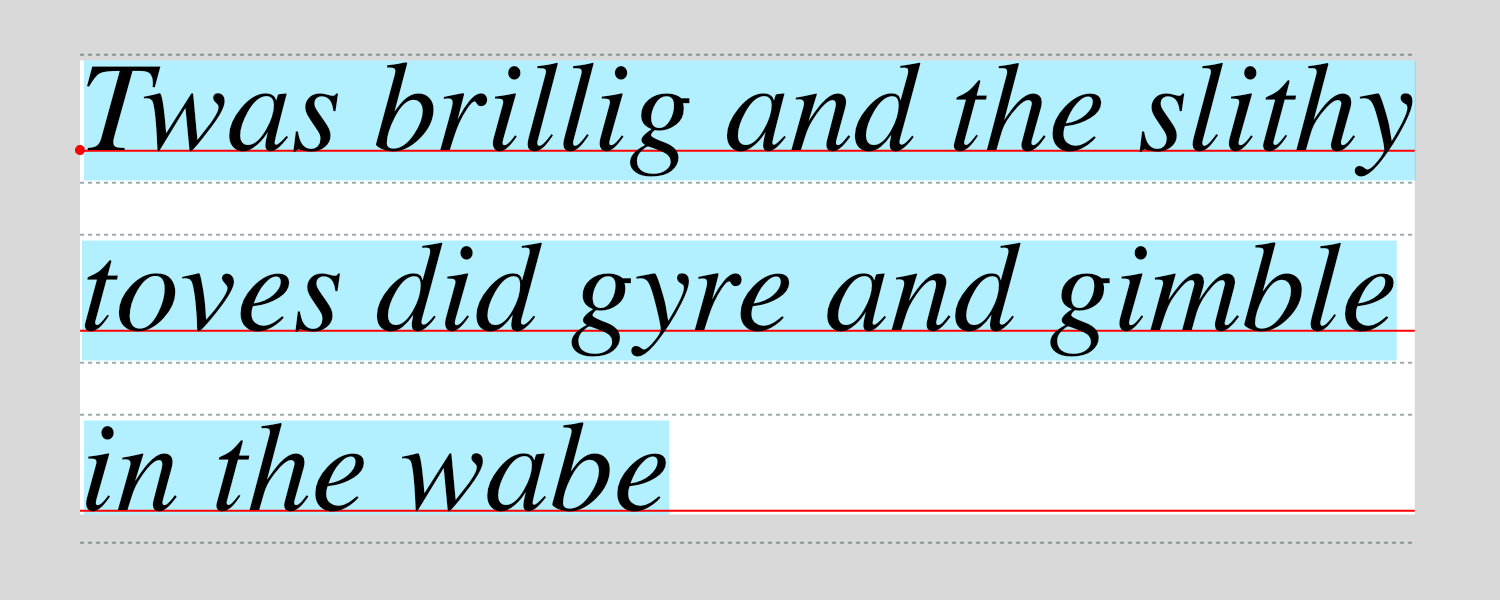

The text-drawing methods’ behavior is mostly standard unless .textWrap
has been set to true
, in which case there are 3 main effects:
- Manual line breaking via
"\n"
escapes will be honored rather than converted to spaces - The optional
width
argument accepted byfillText
,strokeText
andmeasureText
will be interpreted as a ‘column width’ and used to word-wrap long lines - The line-height setting in the
.font
value will be used to set the inter-line leading rather than simply being ignored.
Even when .textWrap
is false
, the text-drawing methods will never choose a more-condensed weight or otherwise attempt to squeeze your entire string into the measure specified by width
. Instead the text will be typeset up through the last word that fits and the rest will be omitted. This can be used in conjunction with the .lines
property of the object returned by measureText()
to incrementally lay out a long string into, for example, a multi-column layout with an even number of lines in each.
measureText()
measureText(str, [width])
TextMetrics

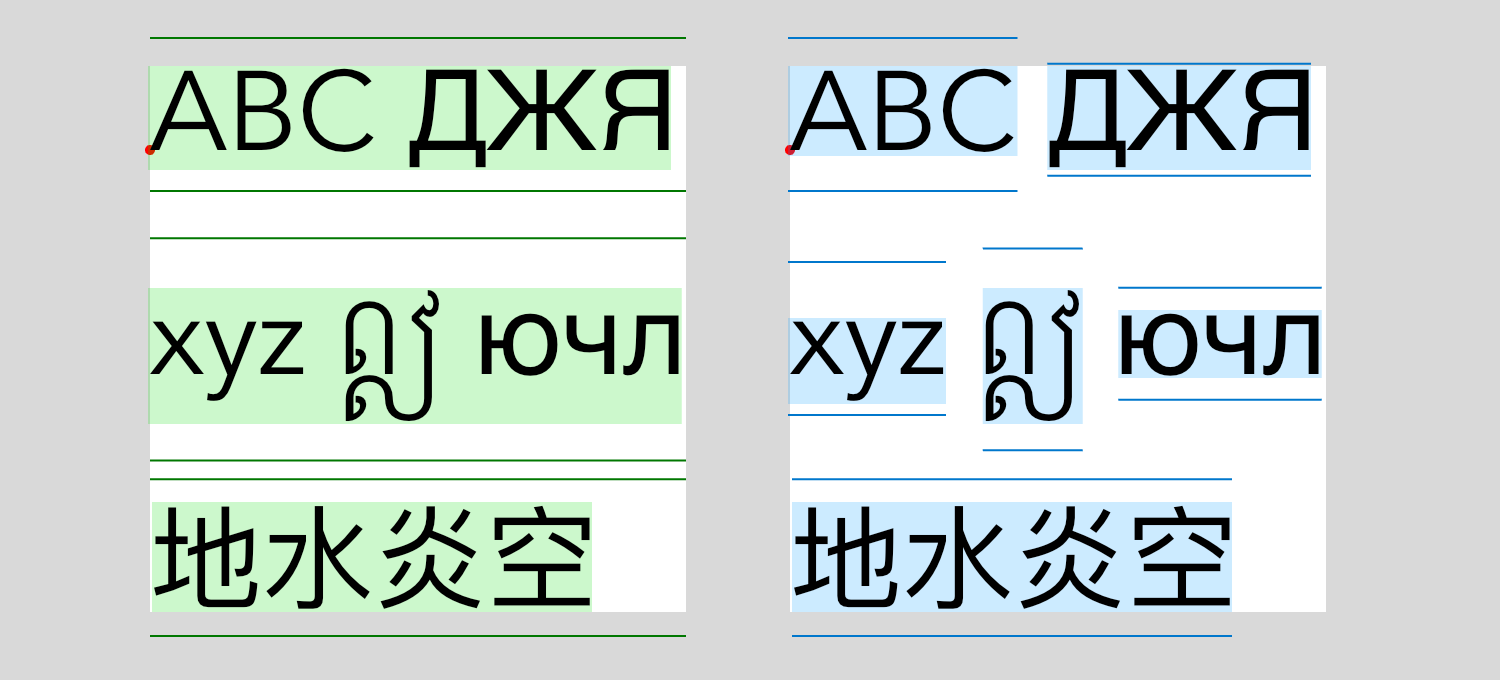

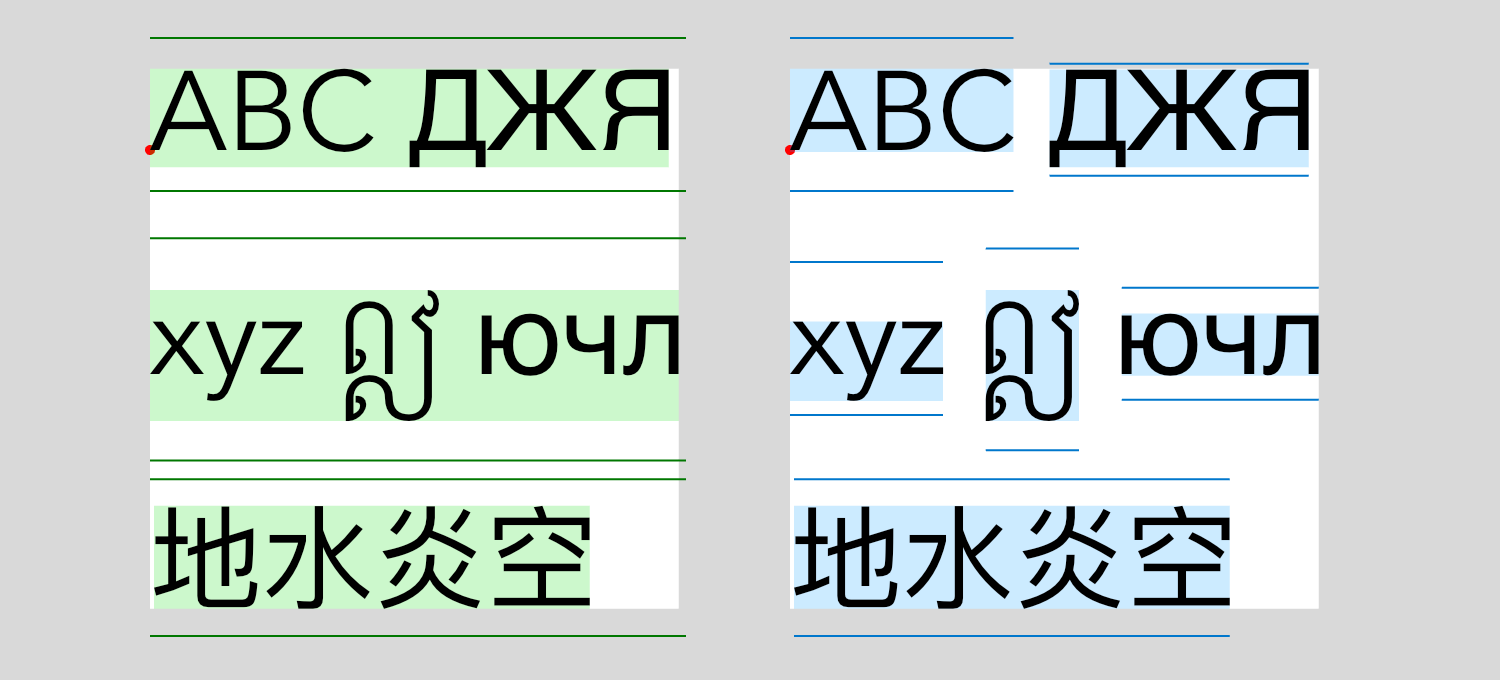

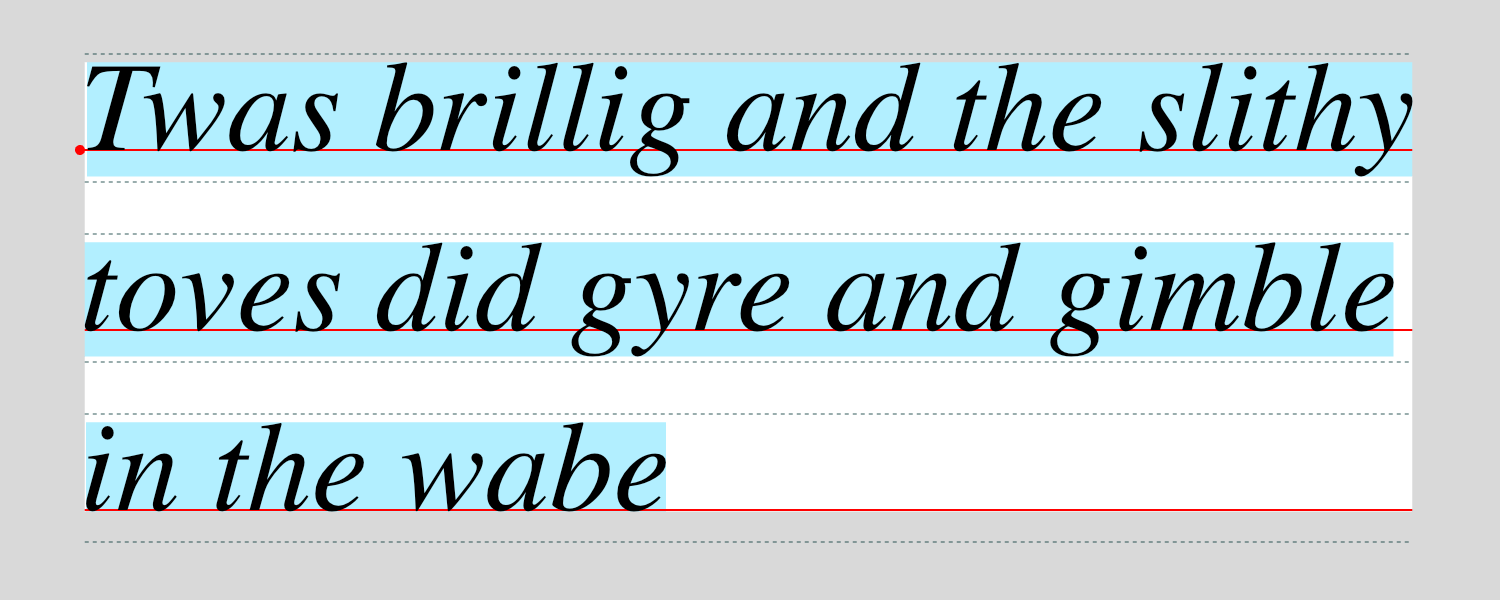

The measureText()
method returns a TextMetrics object describing the dimensions of a run of text without actually drawing it to the canvas. Skia Canvas adds an additional property to the metrics object called .lines
which contains an array describing the geometry of each line individually.
Each element of the .lines
array contains an object of the form:
{x, y, width, height, baseline, startIndex, endIndex}
The x
, y
, width
, and height
values define a rectangle that fully encloses the text of a given line relative to the ‘origin’ point you would pass to fillText()
or strokeText()
(and reflecting the context’s current .textBaseline
setting).

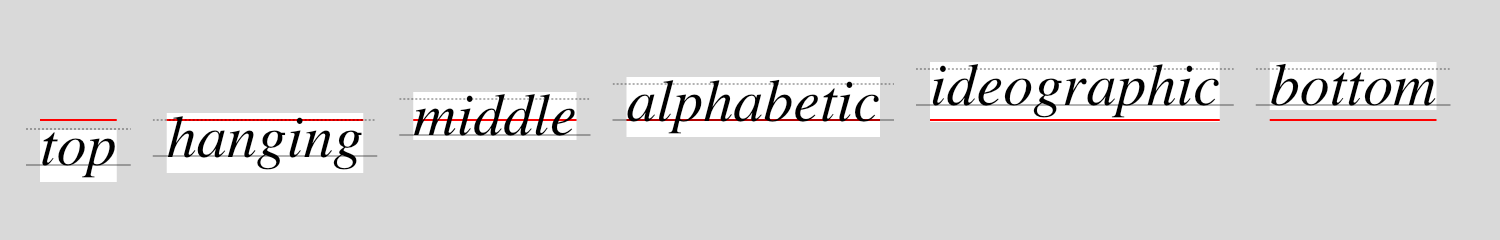

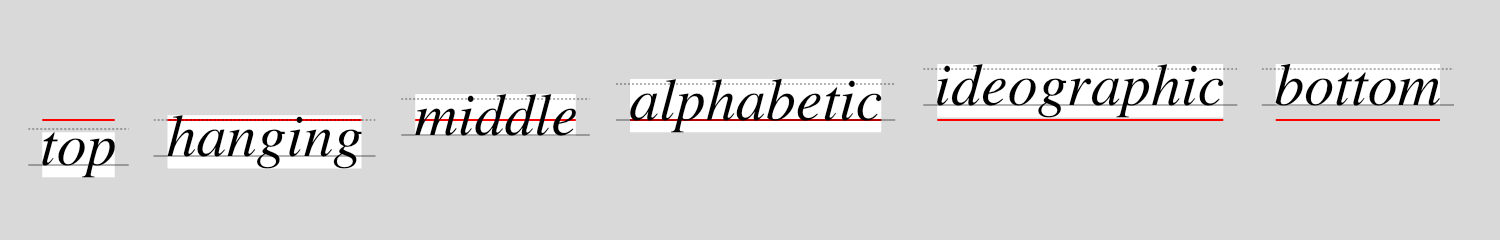

The baseline
value is a y-axis offset from the text origin to that particular line’s baseline.
The startIndex
and endIndex
values are the indices into the string of the first and last character that were typeset on that line.
outlineText()
outlineText(str, [width])
Path2D
The outlineText()
method typesets a string and returns a Path2D containing the shapes of its character glyphs. It will use the context’s current typography settings (e.g., .font
,.textWrap
, .textAlign
.textBaseline
, etc.) to style the string and will anchor the text relative to the (0, 0) origin point. As a result, you’ll typically want to use the context’s transform-related methods or Path2D’s offset()
and transform()
to position the path before drawing it to the canvas.
As with the fillText()
and strokeText()
methods, outlineText()
will produce a single line of text unless .textWrap
is enabled and will use the optional width
argument to determine the maximum line width. If a width
is specified but .textWrap
is not enabled, any text that doesn't fit within that measure will be omitted from the path.
ctx.textBaseline = 'top'
ctx.font = 'bold 140px Helvetica'
let ampersand = ctx.outlineText('&')
for (let i=0; i<8000; i++){
let x = Math.random() * 100,
y = Math.random() * 120;
ctx.fillStyle = path.contains(x, y) ? 'lightblue' : '#eee'
ctx.fillRect(x, y, 2, 2)
}
