Skia Canvas is a browser-less implementation of the HTML Canvas drawing API for Node.js. It is based on Google’s Skia graphics engine and, accordingly, produces very similar results to Chrome’s <canvas> element. The library is well suited for use on desktop machines where you can render hardware-accelerated graphics to a window and on the server where it can output a variety of image formats.

While the primary goal of this project is to provide a reliable emulation of the standard API according to the spec, it also extends it in a number of areas to take greater advantage of Skia's advanced graphical features and provide a more expressive coding environment.

In particular, Skia Canvas:

• is fast and compact since rendering takes place on the GPU and all the heavy lifting is done by native code written in Rust and C++
• can render to windows using an OS-native graphics pipeline and provides a browser-like UI event framework
• generates images in both raster (JPEG, PNG, & WEBP) and vector (PDF & SVG) formats
• can save images to files, return them as Buffers, or encode dataURL strings
• uses native threads in a user-configurable worker pool for asynchronous rendering and file I/O
• can create multiple ‘pages’ on a given canvas and then output them as a single, multi-page PDF or an image-sequence saved to multiple files
• can simplify, blunt, combine, excerpt, and atomize bézier paths using efficient boolean operations or point-by-point interpolation
• provides 3D perspective transformations in addition to scaling, rotation, and translation
• can fill shapes with vector-based Textures in addition to bitmap-based Patterns and supports line-drawing with custom markers
• supports the full set of CSS filter image processing operators
• offers rich typographic control including:
  • multi-line, word-wrapped text
  • line-by-line text metrics
  • small-caps, ligatures, and other opentype features accessible using standard font-variant syntax
  • proportional letter-spacing, word-spacing, and leading
  • support for variable fonts and transparent mapping of weight values
  • use of non-system fonts loaded from local files

Example Usage

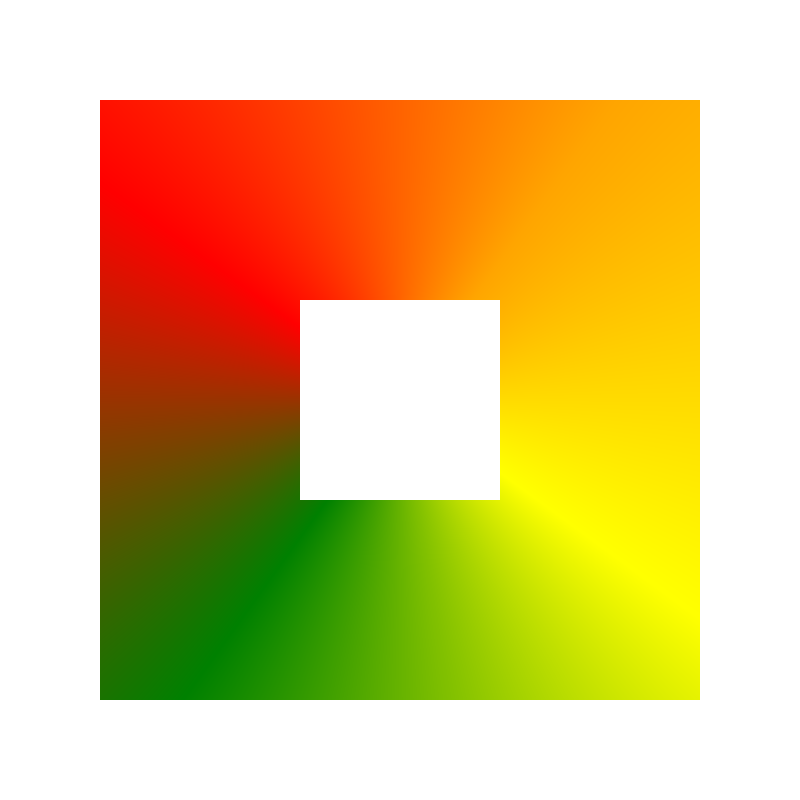

Generating image files

import {Canvas} from 'skia-canvas'

let canvas = new Canvas(400, 400),
    ctx = canvas.getContext("2d"),
    {width, height} = canvas;

let sweep = ctx.createConicGradient(Math.PI * 1.2, width/2, height/2)
sweep.addColorStop(0, "red")
sweep.addColorStop(0.25, "orange")
sweep.addColorStop(0.5, "yellow")
sweep.addColorStop(0.75, "green")
sweep.addColorStop(1, "red")
ctx.strokeStyle = sweep
ctx.lineWidth = 100
ctx.strokeRect(100,100, 200,200)

// render to multiple destinations using a background thread
async function render(){
  // save a ‘retina’ image...
  await canvas.saveAs("rainbox.png", {density:2})
  // ...or use a shorthand for canvas.toBuffer("png")
  let pngData = await canvas.png
  // ...or embed it in a string
  let pngEmbed = `<img src="${await canvas.toDataURL("png")}">`
}
render()

// ...or save the file synchronously from the main thread
canvas.saveAsSync("rainbox.pdf")

Multi-page sequences

import {Canvas} from 'skia-canvas'

let canvas = new Canvas(400, 400),
    ctx = canvas.getContext("2d"),
    {width, height} = canvas

for (const color of ['orange', 'yellow', 'green', 'skyblue', 'purple']){
  ctx = canvas.newPage()
  ctx.fillStyle = color
  ctx.fillRect(0,0, width, height)
  ctx.fillStyle = 'white'
  ctx.arc(width/2, height/2, 40, 0, 2 * Math.PI)
  ctx.fill()
}

async function render(){
  // save to a multi-page PDF file
  await canvas.saveAs("all-pages.pdf")

  // save to files named `page-01.png`, `page-02.png`, etc.
  await canvas.saveAs("page-{2}.png")
}
render()

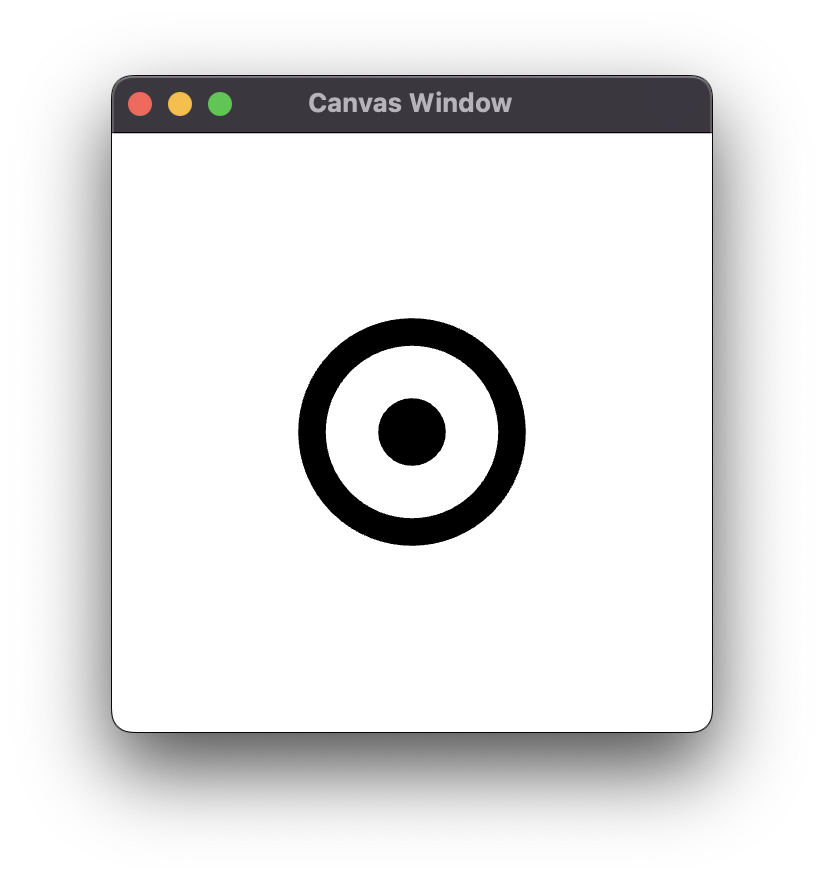

Rendering to a window

import {Window} from 'skia-canvas'

let win = new Window(300, 300)
win.title = "Canvas Window"
win.on("draw", e => {
  let ctx = e.target.canvas.getContext("2d")
  ctx.lineWidth = 25 + 25 * Math.cos(e.frame / 10)
  ctx.beginPath()
  ctx.arc(150, 150, 50, 0, 2 * Math.PI)
  ctx.stroke()

  ctx.beginPath()
  ctx.arc(150, 150, 10, 0, 2 * Math.PI)
  ctx.stroke()
  ctx.fill()
})
